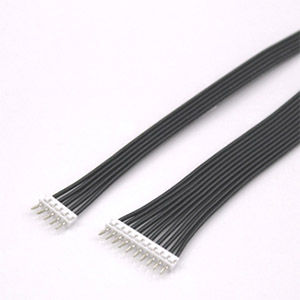

JBP Connector

    • 2.0mm pitch low type connector of 3.0mm(compared JAM product 60%)mounting height on P.C.B. meets high density.
    • Most suitable for resin cost when required high density and potting of inside apparatus.
    Pitch (mm) 2.0
    Mounting Style DIP
    Poles Single:2~15P
    Wire Size AWG #26~ #30

    Product Catalog

    Specifications



    Poles 2~15P
    Pitch 2.0mm
    Rated Voltage AC.DC 250V
    Rated Current 1A
    Withstand Voltage AC1000V/1min
    Insulation Resistance 500MΩover
    Temperature Range -20~+85℃
    Applicable P.C.B. Thickness 1.6mm
    Applicable P.C.B. Hole dia. Reference board・assembly layout
    Wire Size AWG#26~#30

    Terminal/Applicator

    Terminal No. Wire Size Dia of Insulation Applicator
    for Crimping Machine for Strip Crimper
    508250-2MA #26 ~ #30 0.88 ~ 1.4mm TJS-16800

    Refer to the catalog or specification sheet for the terminal’s detail.
