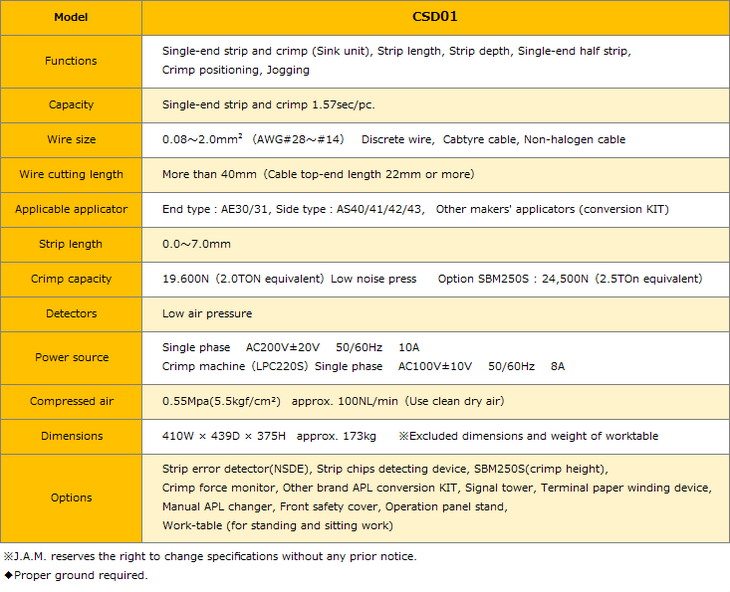

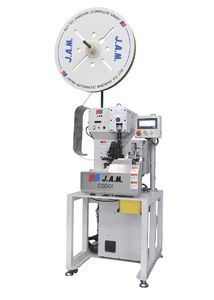

Semi Automatic Crimping Machines CSD01 Improved the quality by semi-automatic crimping instead of manual crimping Features : Side and End feed applicators can be mounted. Setting of Strip length/depth, Crimp position and Timing can be done through operation panel, manual setting is not required. Also usable as semi-automatic crimping machine. A wide range of options such as Crimp force monitor, Manual APL changer, Strip error detector and etc., are available. Applications For Consumer Appliances, For Automotive Crimp capacity (kN) 19.6 Product Catalog CSD01(Catalog)(202KB) Specifications Video
Improved the quality by semi-automatic crimping instead of manual crimping Features : Side and End feed applicators can be mounted. Setting of Strip length/depth, Crimp position and Timing can be done through operation panel, manual setting is not required. Also usable as semi-automatic crimping machine. A wide range of options such as Crimp force monitor, Manual APL changer, Strip error detector and etc., are available. Applications For Consumer Appliances, For Automotive Crimp capacity (kN) 19.6
