Circular Workpiece Clamp Toolings

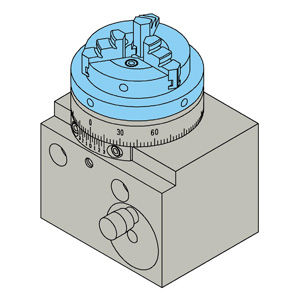

BC65B-V
- Lever chucks
- Setup time is reduced with use of a simple indexing function.

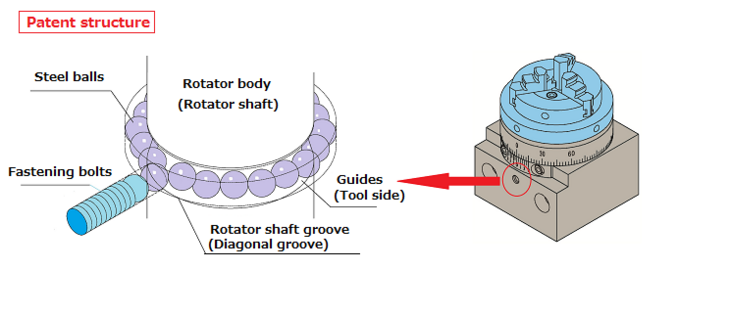

- Adoption of a special ball lock mechanism ensures high lockrepetition accuracy for precision positioning.
- Hand-turned handle structure.
- BC65B-V 4.9ｋｇ

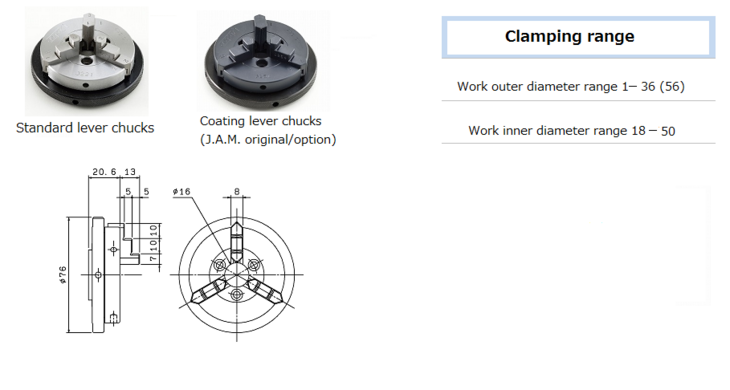

| Outer Range | 36 |
|---|---|
| Inner Range | 50 |
Lever chucks

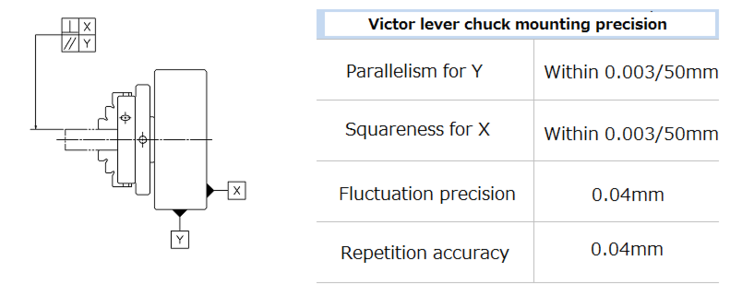

Victor lever chuck mounting precision
