Precision Vises

精密バイス

About Processing Conditions ICONS

Precision Ball Lock Chuck / J.A.M. original G1 Chuck specialized for SG Collet

Circular Workpiece Clamp Toolings

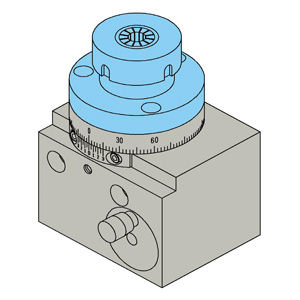

BC65B-Y

    • J.A.M. original G1 chuck specialized for SG collet
    • Setup time is reduced with use of a simple indexing function.
    • Adoption of a special ball lock mechanism ensures high lockrepetition accuracy for precision positioning.
    • Hand-turned handle structure.
    Outer Range 20

    Specifications

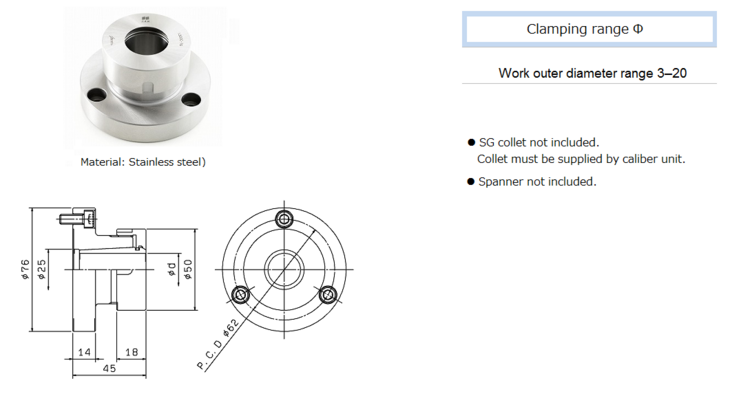

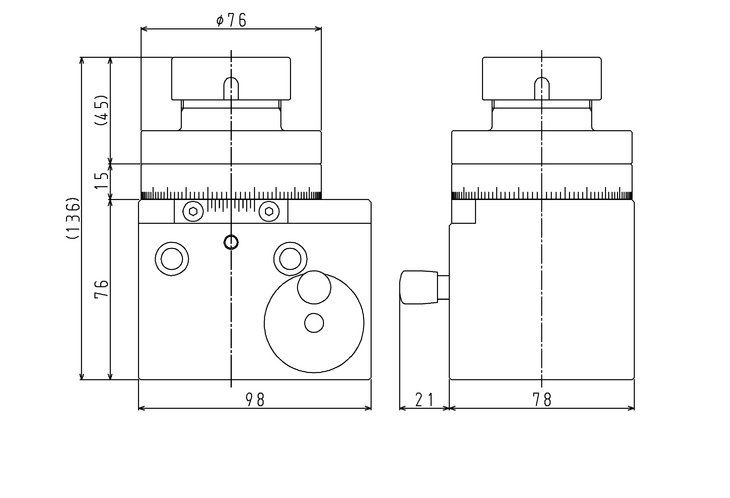

    Dimensions

    Associated Info

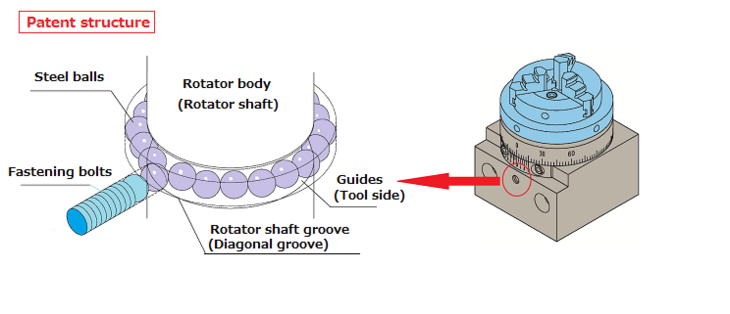

    Ball lock chuck system structure

    J.A.M. original G1 chuck specialized for SG collet

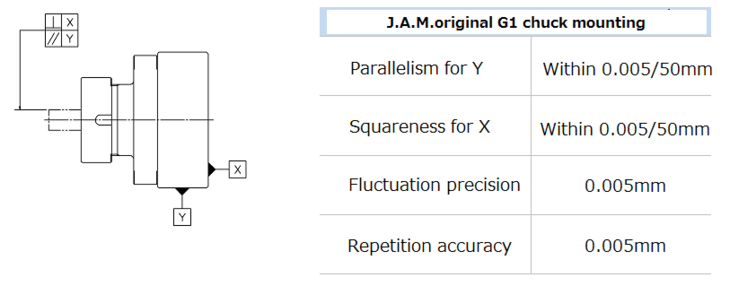

    J.A.M.original G1 chuck mounting precision
