Circular Workpiece Clamp Toolings
MC65A-V

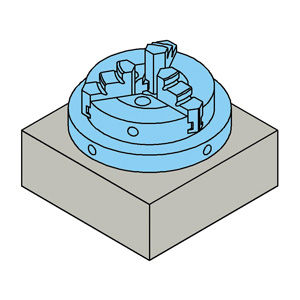

- Lever chucks
- Block serving as the base when attaching the optional chuck.

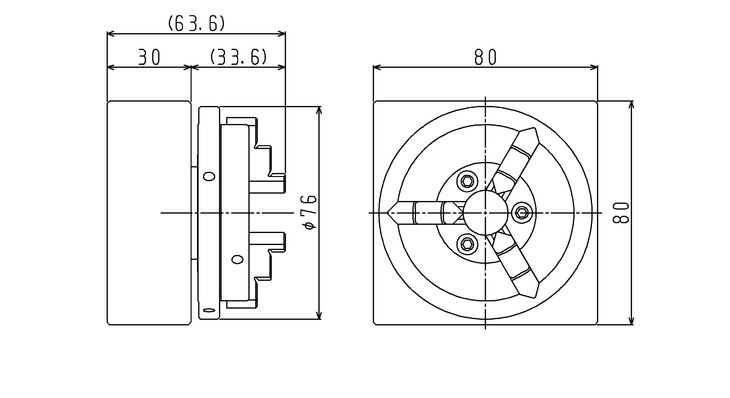

- Size is square with 80mm sides, with all surfaces given a polished finish.
- Use possible even with 90° partitioning.
-
Use with the J.A.M. precision sine vise is the key to simplified circular workpiece angle processing.

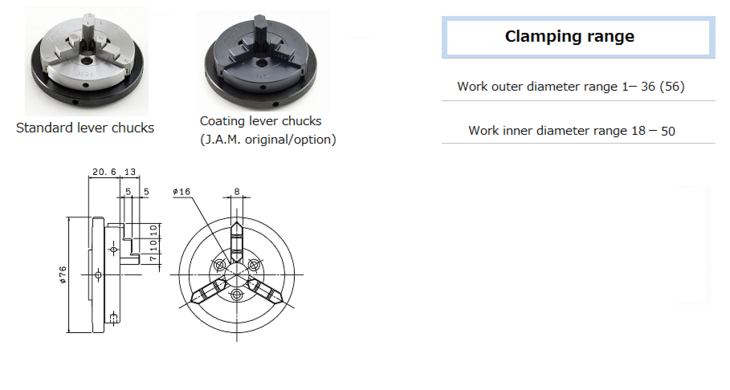

| Outer Range | 36 |
|---|---|
| Inner Range | 50 |

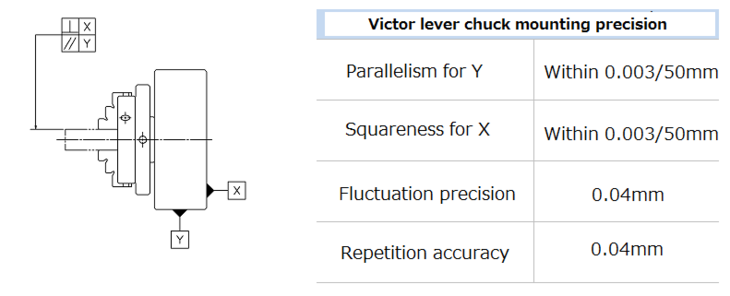

Victor lever chuck mounting precision
