TDC76-V

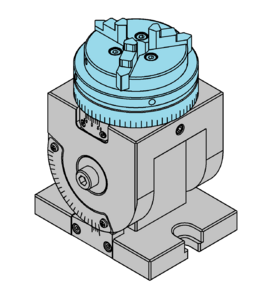

    • Rotary table serving as base when attaching the optional chuck.
    • Hold part angle can be set from 0 to 90° with use of a simple indexing function, with the chuck section component capable of 360°rotation.
    • This unit is made using stainless steel. The compact design facilitates use in various different processing environments without concern about location.
    Outer Range 36
    Inner Range 50

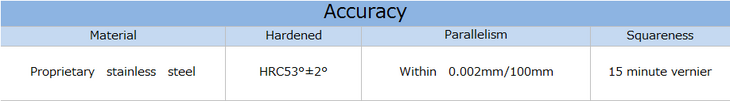

    Specifications

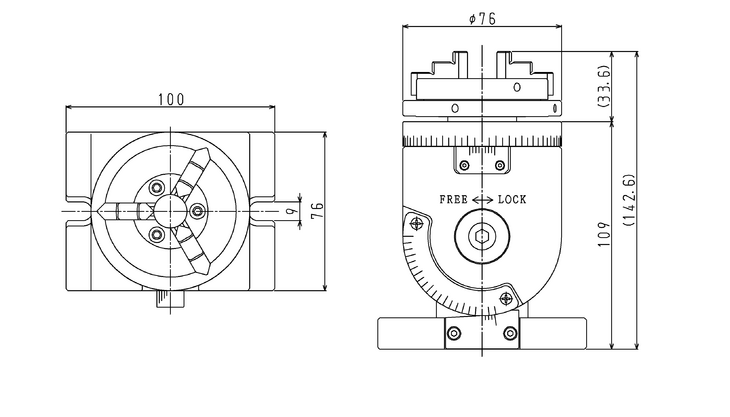

    Dimensions

    Associated Info

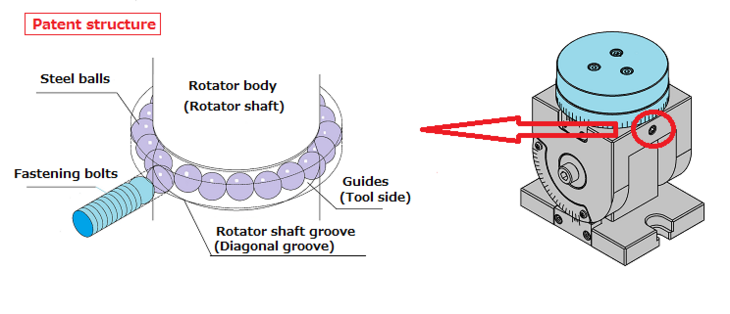

    Ball lock chuck system structure

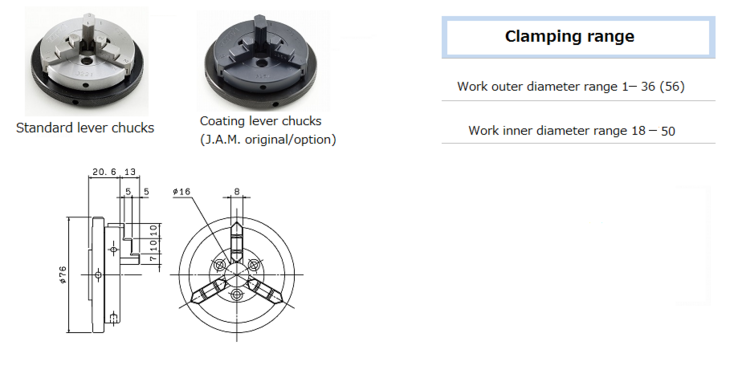

    Lever chucks

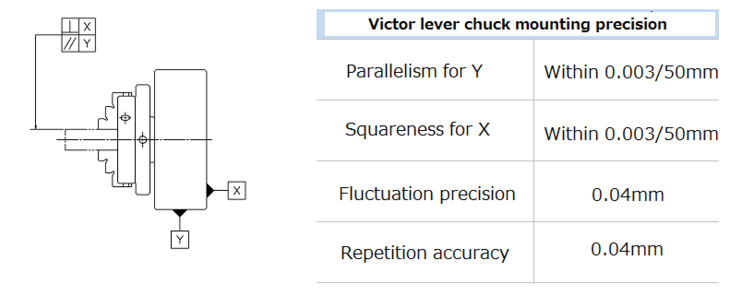

    Victor lever chuck mounting precision
