Precision Ball Lock Chuck / J.A.M. original G1 Chuck specialized for SG Collet

Circular Workpiece Clamp Toolings

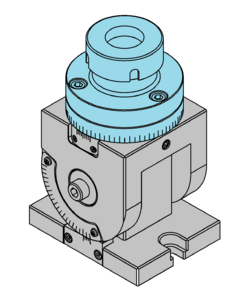

TDC76-Y

    • J.A.M. original G1 chuck specialized for SG collet
    • Rotary table serving as base when attaching the optional chuck.
    • Hold part angle can be set from 0 to 90° with use of a simple indexing function, with the chuck section component capable of 360° rotation.
    • This unit is made using stainless steel. The compact design facilitates use in various different processing environments without concern about location.
    Outer Range 20

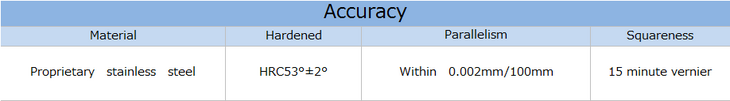

    Specifications

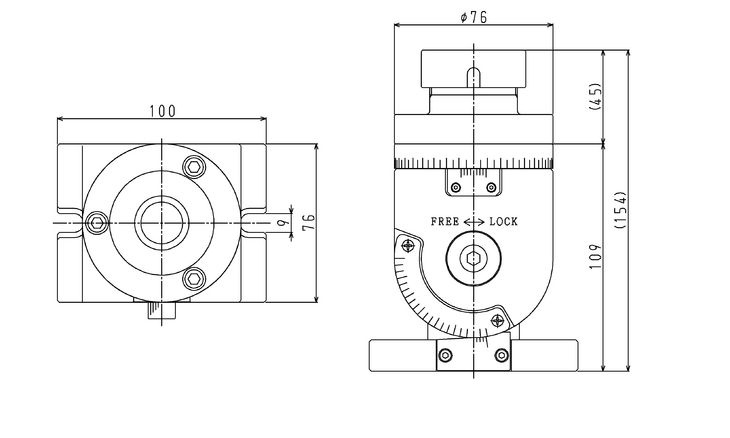

    Dimensions

    Associated Info

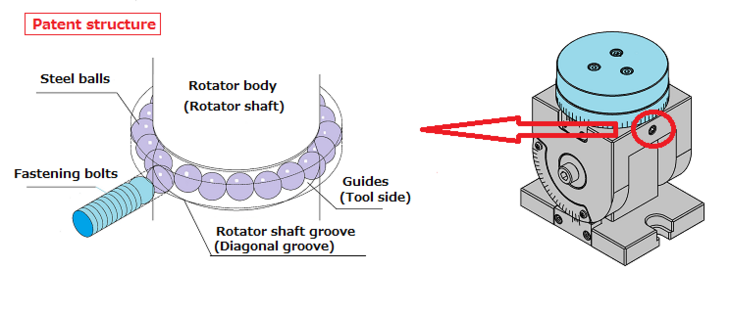

    Ball lock chuck system structure

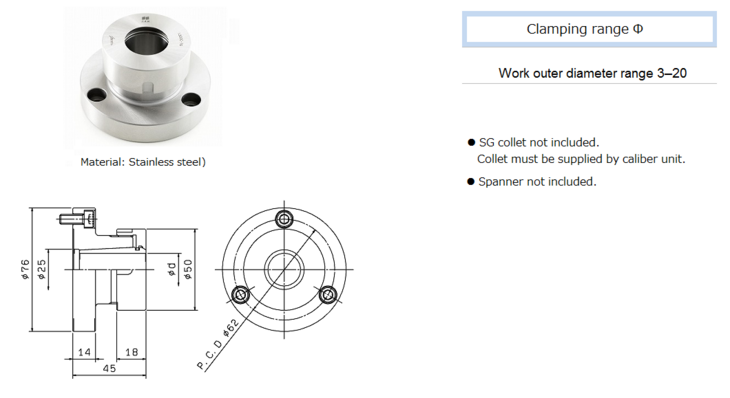

    J.A.M. original G1 chuck specialized for SG collet

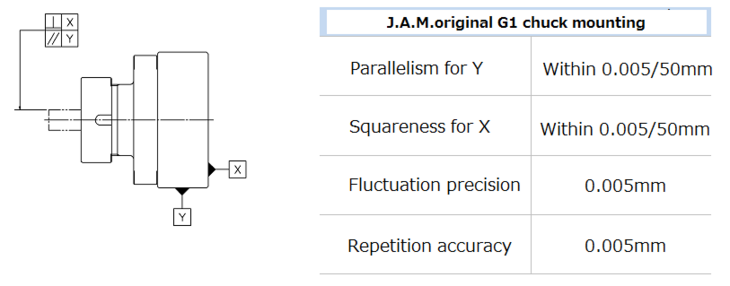

    J.A.M.original G1 chuck mounting precision
